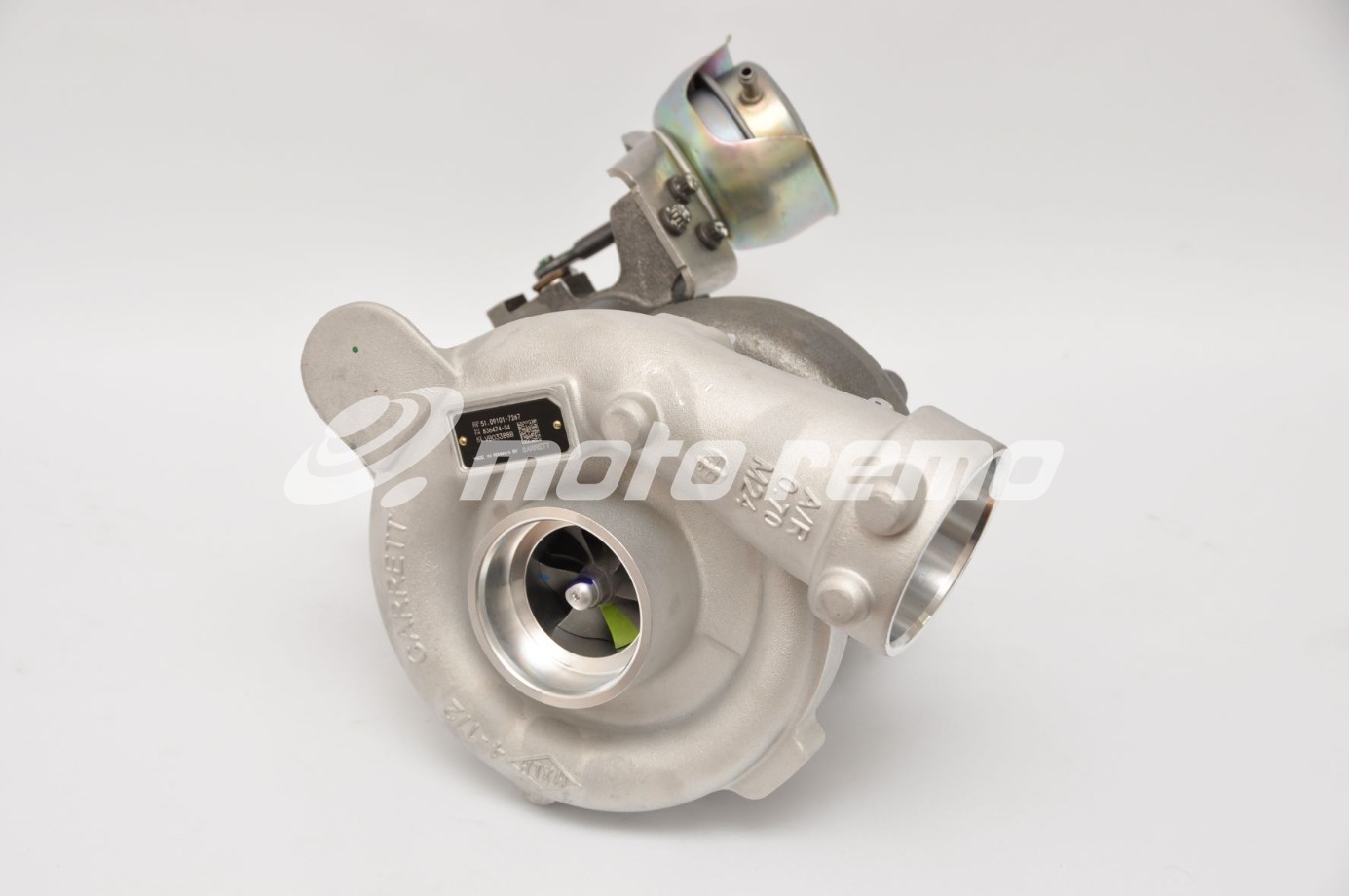

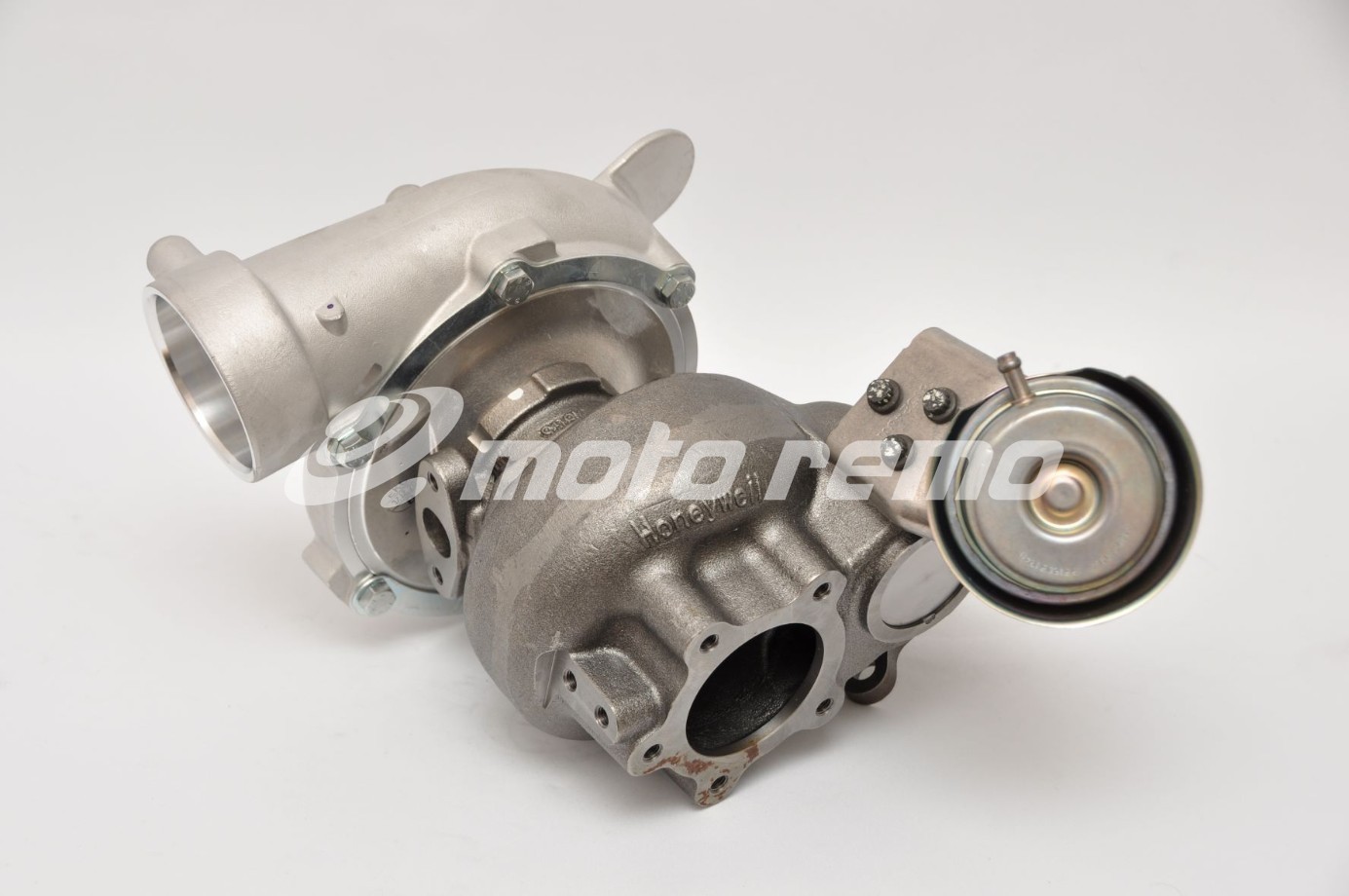

Turbocharger MAN 836474-5010S

illustrative photo

  • Turbocharger 836474-5010S 51091017267, 51091017292, 51.09101-7267, 51.09101-7292
  • Turbocharger 836474-5010S 51091017267, 51091017292, 51.09101-7267, 51.09101-7292
  • Turbocharger 836474-5010S 51091017267, 51091017292, 51.09101-7267, 51.09101-7292
back
Ask about the product
Number:

836474-5010S

Brand:

MAN

OEM No.:

51091017385, 51091017267, 51091017292, 51.09101-7267, 51.09101-7292, 51.09101-7385

Replacement:

836474-5004S, 836474-5012S, 836474-0004, 836474-0010, 836474-0012

Model:

TGA, TGX

Year of manufacture:

2006-2016

Engine type:

D2676LF

Capacity:

12,4

Type of fuel:

D

Power:

400KM, 441KM, 480KM, 540KM

Turbocharger type:

GTC3067S

Repair kit:

b.d.

Compressor wheel:

b.d.

shaft and wheel:

b.d.

Centre:

b.d.

Actuator:

813894-0008, 831041-0002

Assembly kit:

b.d.

Gasket set:

SP-1-332 / ZMP10.055

Technical data:

n.d.

Additional information:

Turbospręzarka HP; Dual Stage do kompletu z 831661-5012S

Related products:


Brand

Year

Capacity

Power

Number

Replacement

OEM

Turbocharger 831661-5012S 51091017248, 51091017268, 51.09101-7248, 51.09101-7268

MAN

2006-2016

12,4

400HP, 441HP, 480HP, 540HP

831661-5012S

831661-5007S, 831661-0007, 831661-0012

51091017248, 51091017268, 51.09101-7248, 51.09101-7268
