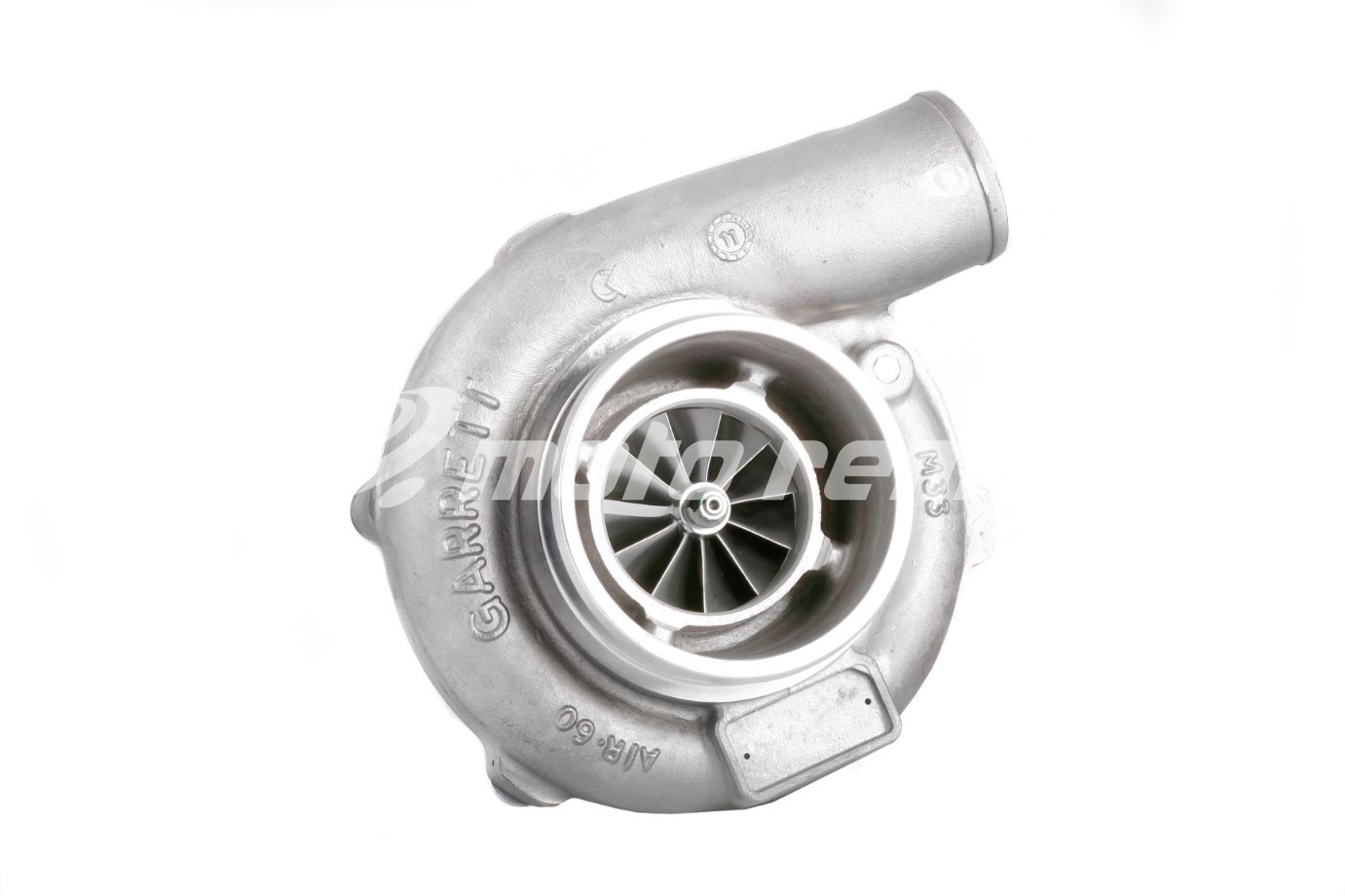

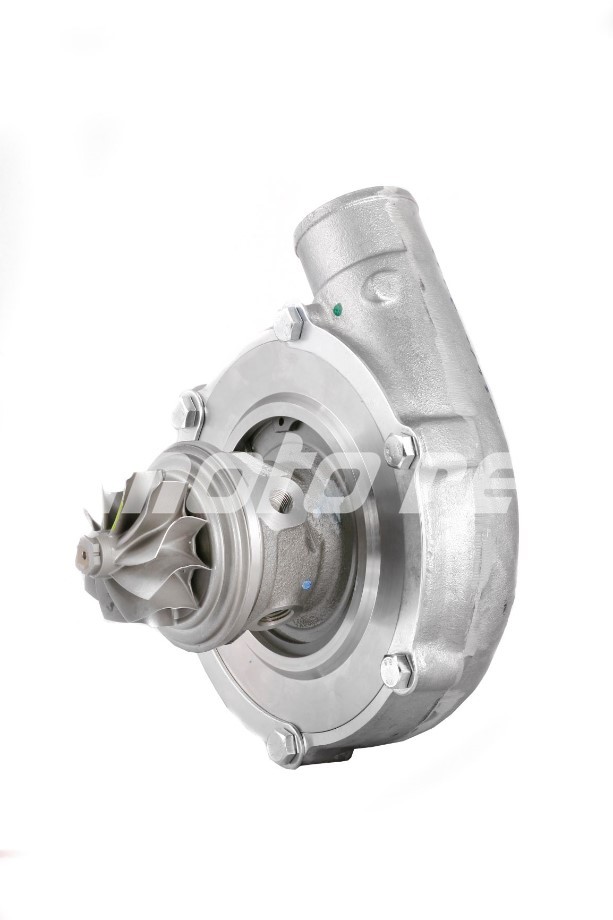

Tuning Garrett 836047-5001S

illustrative photo

  • Super Core 836047-5001S
  • Super Core 836047-5001S
back
Ask about the product
Number:

836047-5001S

Brand:

Garrett

OEM No.:

n.d.

Replacement:

836047-5001S, 803714-5001, 803714-0001, 803714-1, 836047-0001, 836047-1

Product:

Super Core

Series:

GTX

Type:

GTX3576R

Bearings:

Ball bearings

Rotation:

standard

Technical data:

Compressor side:  TRIM 58 A/R 0.60.

Turbine side:  TRIM 84.

Bearing housing: Oil & water cooled system.

Turbine housing & actuator not included.

Turbine housings options.

We highly recommend the use of an oil inlet restrictor.

Additional information:

Weight: 5.5 kg. Garrett engine boosting systems performance products are for racing vehicles, not intended to be driven on a public highway. Turbocharger dedicated for tuning. It has 12 months manufacturer warranty on manufacturing damages.
