Tuning Garrett 836027-5002S

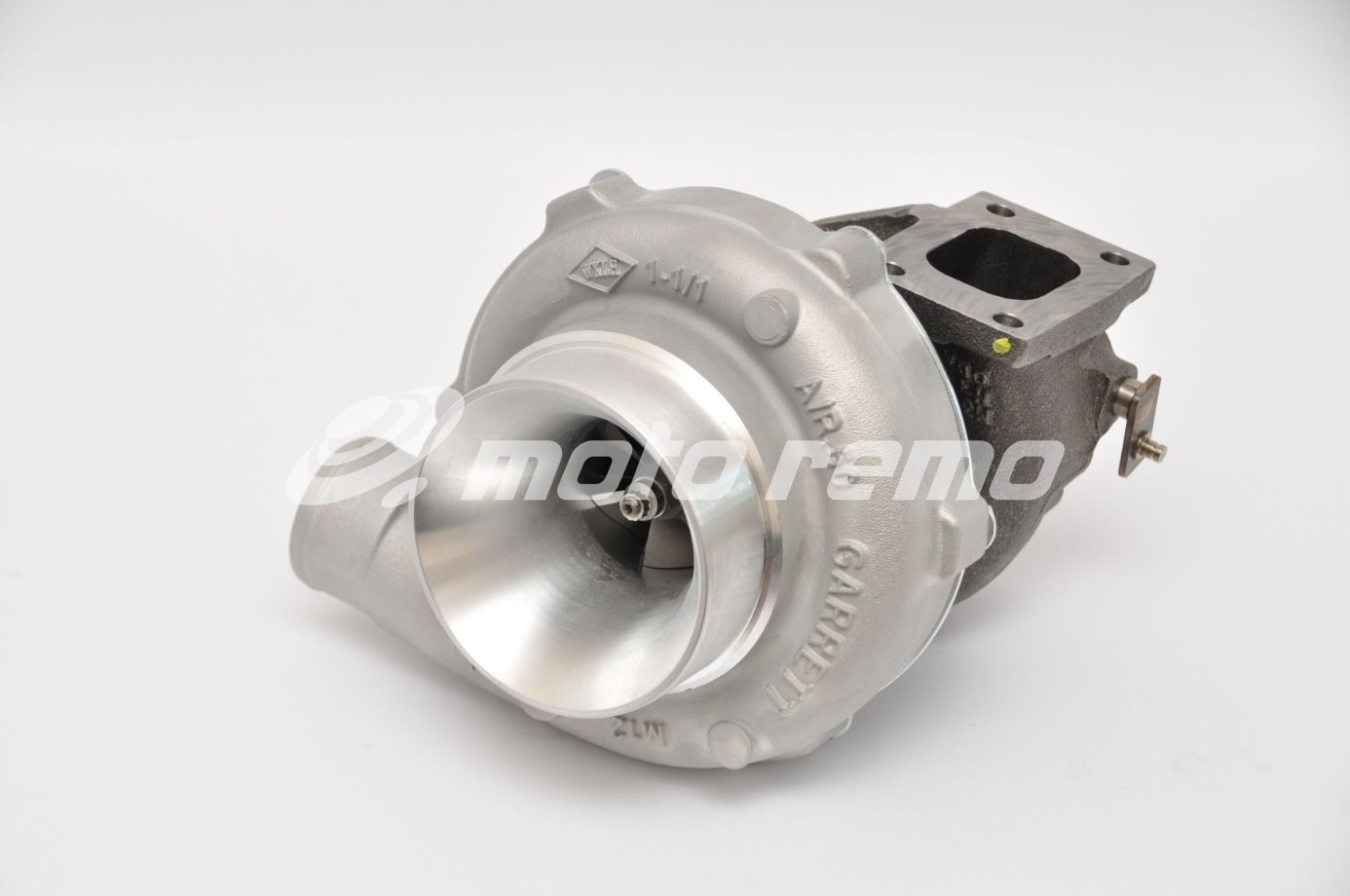

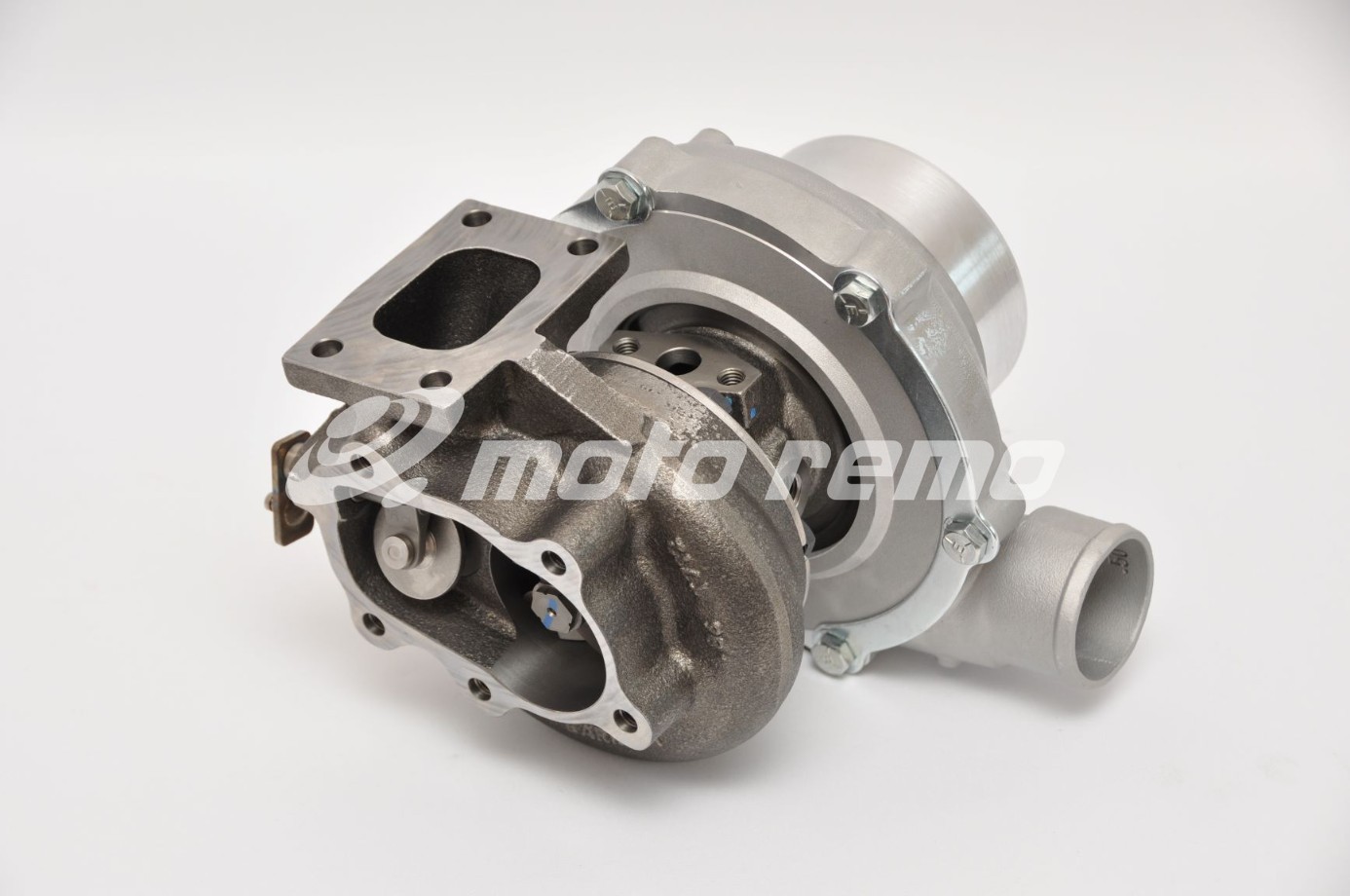

illustrative photo
836027-5002S
Garrett
n.d.
700382-5020S, 700382-0020, 700382-20, 836027-5002, 836027-0002, 836027-2
Product:
Turbocharger
Series:
GT
Type:
GT2971R
Bearings:
Ball bearings
Rotation:
standard
Technical data:
Compressor side: TRIM 56 A/R 0.50.
Turbine side: TRIM 90 A/R 0.86 – T25 / 5-bolts – wastegated.
Bearing housing: Oil & water cooled system.
Turbine housings options.
Actuator not included, for actuator use 759498-0003.
We highly recommend the use of an oil inlet restrictor.
Additional information:
Weight: 7,6 kg. Garrett engine boosting systems performance products are for racing vehicles, not intended to be driven on a public highway. Turbocharger dedicated for tuning. It has 12 months manufacturer warranty on manufacturing damages.
