Design change to R2S turbochargers VW T6 / T6.1
In vehicles equipped with 2.0 TDI engines used in the VW T6/T6.1, a design change has been introduced to the EGR branch in the exhaust manifold (see Fig. 1). The older version of the turbocharger has been discontinued – only the new version of the R2S turbocharger is currently available.
If the new version of the turbocharger is installed in a vehicle where the older version was previously fitted, additional mounting components are required. These components are not included with the turbocharger and must be ordered separately.

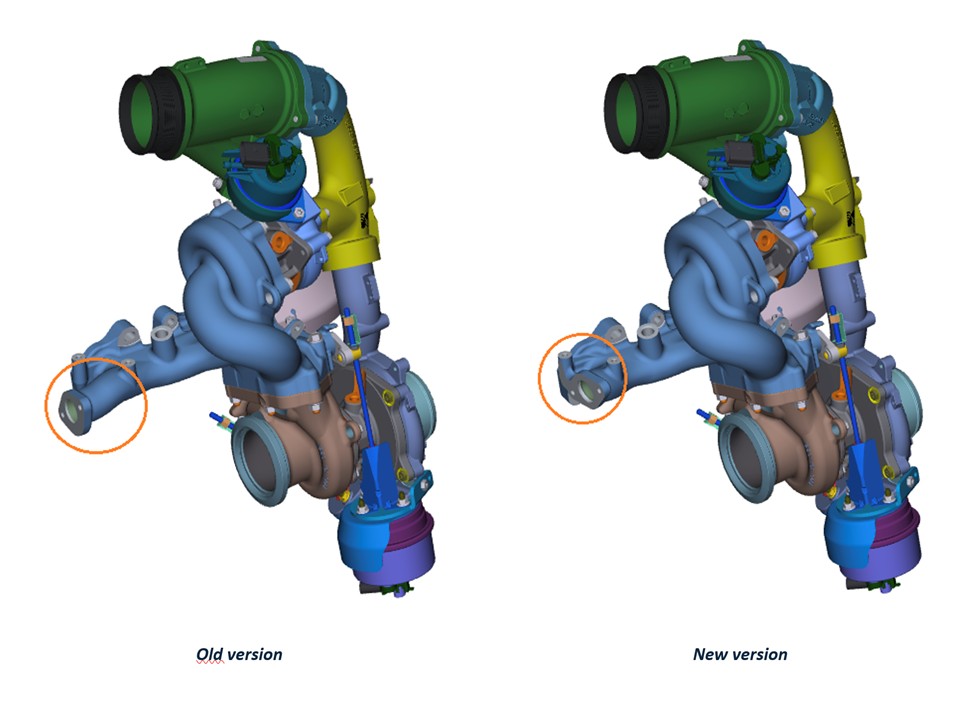

Fig. 1. Comparison of system versions (old / new) – the difference in the EGR branch area is marked with a circle.
Engines and turbochargers affected by the change
| Version | Vehicle | Engine Code | Production Date | R2S System BW PNs | R2S System VW PNs | R2S System MAN PNs | HP Stage BW PNs | HP Stage VW PNs | HP Stage MAN PNs |
| Old | VW T6/T6.1 150 kW | CXEB | until 12.08.2018 | 10009700191 10009700206 10009700234 10009700273 10009710205 | 03N145701C 03N145701F 03N145703E 03N145703G 03N145703M | - | 16359710023 | 03N198701A | - |
| New | VW T6/T6.1 146-150 kW | CXEB/CXEC | from 13.08.2018 | 10009700286 10009700376 10009700383 | 03N145703N 03N145704C 03N145704L | - | 16359710033 16359710049 | 03N198701P 03N145713B | - |
Required additional mounting components (OEM part numbers)
The part numbers listed below apply to the components required to adapt the new version of the turbocharger to the older manifold/EGR configuration. We recommend verifying the correct selection by VIN (depending on the vehicle version and gearbox).
| Part | Quantity | VW T6/T6.1 |
| Plate (item 5) | 1 | 03N145811B |
| Flanged bolt M6x8 (item 6) | 2 | N10688402 |
| Gasket (items 9 and 16) | 2 | 03L131547P |
| Connecting pipe (item 10) | 1 | 04L131521BF |
| Hex socket screw M8x20 (item 12) | 2 | N91026802 |
| Hex socket screw M8x22 (item 13) | 2 | N91046101 |
Fig. 2. Diagram of the adapter components required for installation (positions: 5, 6, 9, 10, 12, 13, 16).
Recommendations
- Verify the vehicle variant (model and gearbox) before installation.
- Treat part numbers as reference only – we recommend confirming the correct selection by VIN.
- Mounting components must be ordered separately (OE / parts supplier) – they are not included in the turbocharger kit
Source of drawings and data: BORGWARNER manufacturer technical bulletin (Info No. S02B2023, 22.02.2023)
